Removing the oil return line for the exhaust turbocharger

Preliminary work

• Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
• Refer to REMOVING THE CENTER UNDERBODY PROTECTION .

• Version A:
  • Have a rag ready and catch any motor oil that may emerge.
  • Loosen the screws (1) and (2).
  • Guide out and remove the oil return line.

  Courtesy of BMW OF NORTH AMERICA, INC.

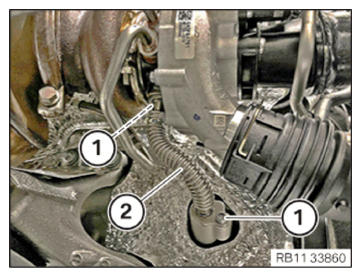

• Version B:
  • Have a rag ready and catch any motor oil that may emerge.
  • Release the screws (1).
  • Feed out and remove the oil return line (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
