67 62 020 Removing and installing/replacing flat motor for rear left or right power window regulator (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the flat motor for the rear power window
Remove the flat motor for the rear power window
Preliminary works
Remove the door handle
COVER
.
Remove rear door trim
PANEL
.

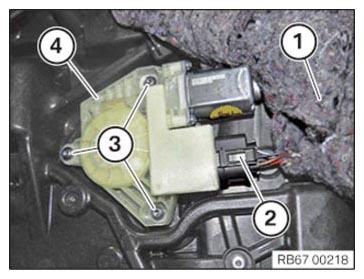

Lift fleece (1) as shown.
Unlock plug connection (2) and disconnect.
Loosen screws (3).
Remove the flat motor (4).
Courtesy of BMW OF NORTH AMERICA, INC.
