11 15 140 Replacing the oil separator at cylinders 1 - 4 (N63O2) (M550i xDrive, 2018-2019)

Preliminary work needed:

REMOVE CYLINDER HEAD COVER

Removal:

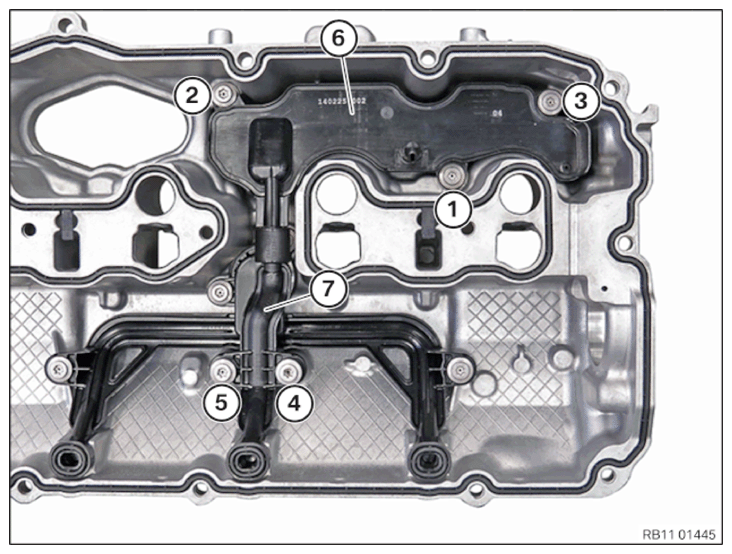

Fig 1: Oil Separator, Channel Screws Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws in the sequence 5 - 1.

Remove the oil separator (6) including channel (7).

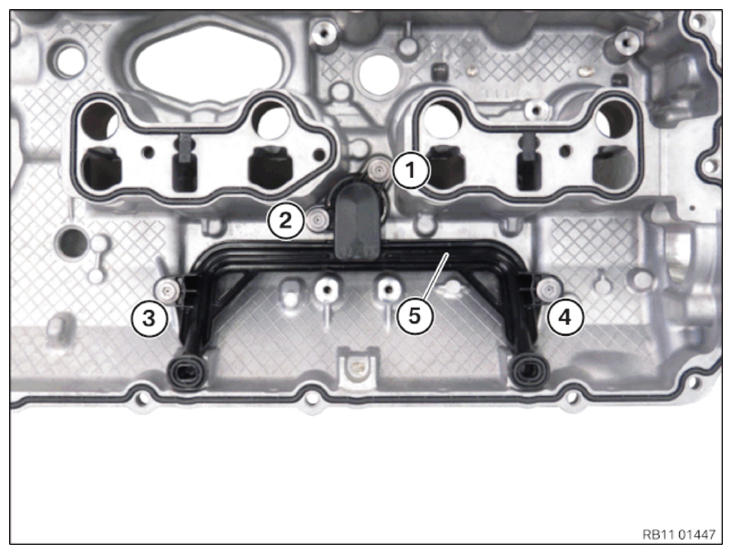

Fig 2: Power Distribution Box Screws Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws in the sequence 4 - 1 .

Remove power distribution box (5).

Installation:

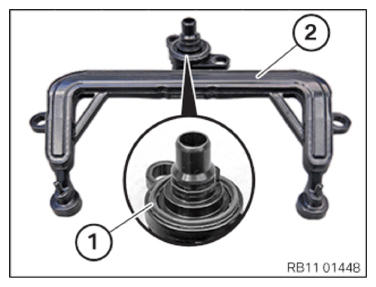

NOTE: Make sure the gasket (1) is correctly installed at the power distribution box (2).

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
All motor oil and contamination must be removed from all threaded holes.
Compliance with torque specifications for screw connections is mandatory!

Fig 3: Power Distribution Box Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Install the power distribution box (5).

Parts : Replace screws.

Tighten screws in the sequence 1 - 4 .

Oil separator to cylinder head cover
M6 Replace screws	Tightening torque	10 Nm

Cylinder head cover to cylinder head
M6x30 screw	Tightening torque	10 Nm

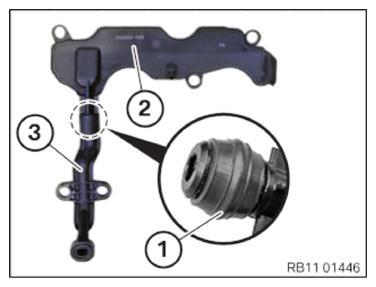

NOTE: Make sure the gasket (1) is correctly installed between the oil separator (2) and the channel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Oil Separator, Channel Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Install the oil separator (6) including channel (7).

Parts : Replace screws.

Tighten screws in the sequence 1 - 5 .

Oil separator to cylinder head cover
M6 Replace screws	Tightening torque	10 Nm

Cylinder head cover to cylinder head
M6x30 screw	Tightening torque	10 Nm

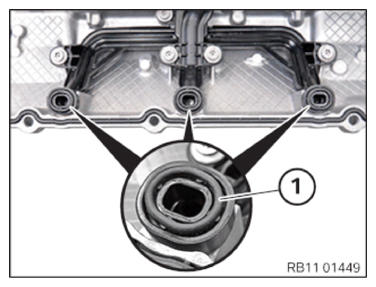

Parts : Replace gaskets (1).

Make sure the gasket (1) is installed correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

INSTALL CYLINDER HEAD COVER
