Removing the coolant pump
Preliminary works
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND FRONT STIFFENING PLATE RESPECTIVELY .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
- Refer to REMOVING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND THE CYLINDER HEAD .
- Refer to DETACHING BELT PULLEY
- Refer to REMOVING THE DRIVE BELT FOR ALTERNATOR .
CAUTION:
Component with preload.
Injury hazard!
Injury hazard!
- Reduce preload as far as possible before disassembly. Relieve component.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Using standard tools, increase the preload on the belt tensioner (1) in the arrow direction .
- Guide the special tool 0 496 268 (11 0 390)
out and remove.

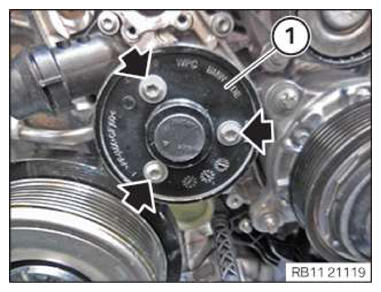

- Remove screws (arrows).
- Feed out and remove the belt pulley (1).
- Loosen screws (1).
- Feed out and remove the coolant pump (2).
- Catch and dispose of escaping coolant.
