Prepare the coolant pump and the coolant pump housing

Further information is available.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

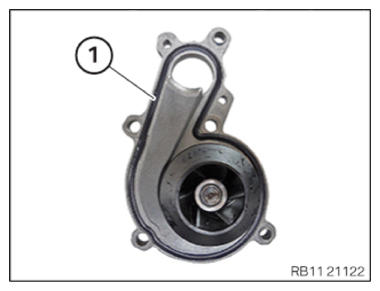

Clean sealing surfaces (1) with special tool 0 495 102 (11 4 470).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

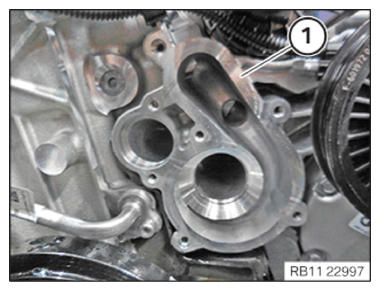

Check the sealing bead (1) for damage.
Check the protrusion of the sealing bead (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The sealing bead (1) is not protruding or the sealing bead (1) is damaged.

Measure
Replace the sealing bead (1).
Have the special tool 2 469 803 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE)

Position the sealing compound (1) as shown on the special tool 2 469 803.

Parts: Sealing compound

Courtesy of BMW OF NORTH AMERICA, INC.

Sealing compound

Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature

50 ml, Cartridge

83190404517

NOTE: TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.

Courtesy of BMW OF NORTH AMERICA, INC.

Apply the sealing compound with a height of approximately 2 mm to 2.5 mm.
Check guide sleeve in the marked coolant pump (1) for correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.
