Supplying The New Parts Required
Prerequisite
- Vehicle is secured on the straightening bench.
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Further information is available.

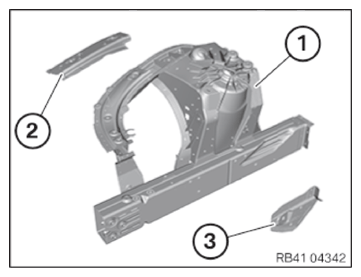

- Prepare the following new parts (see Electronic Parts Catalog [EPC]):
Front wheel arch (1)
Carrier support, wheel arch, front (2)
Engine mount reinforcement (3)
Support bracket shaped part
NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) - (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022) - Supply the following consumables:
Material Quantity Adhesive K1 1 Blind rivet N1 65 Blind rivet N2 2 Blind rivet N3 3 Blind rivet N6 1 EMC screw 3 Cleaning agent R1 1 Cleaning agent R2 1 Sealing compound D1 Cavity protection wax remover
