Installing the exhaust turbocharger (cylinder head removed)

• Replace gasket.

  Parts:  Gasket

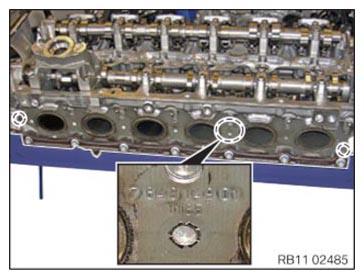

• Install gasket so that the part number is visible.
• During installation of the exhaust turbocharger/exhaust manifold, make sure that the gasket is correctly positioned in the guide pins in the highlighted areas.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Do not damage the thermal compensating elements. Disassembly and installation including intermediate storage of the exhaust turbocharger is only permitted with mounted special tool 2 466 919.
• Thermal compensating element of the exhaust turbocharger/exhaust manifold should not be bent or deformed!

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thread in exhaust turbocharger from top and position on the trim strip.
• Position the sliding rail (1).
• Install the shifting strip (1) so that the part number is visible.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace nuts (1) to (7).

  Parts:  Nuts

• Tighten nuts in the sequence (1) to (7) in semi-circular pattern.
  Fig 1: Exhaust Turbocharger Nuts Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
  TIGHTENING TORQUES SPECIFICATION



  Exhaust manifold to cylinder head
  Flange nut M7 Replace flange nuts	1. Joining torque	10 Nm
  	2. Joining torque	10 Nm
  	3. Joining torque	16 Nm
  	4. Joining torque	16 Nm
  	5. Joining torque	16 Nm

• Unscrew the nuts (2) and remove the retainer (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unscrew the nuts (2) and remove the retainer (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (2) and remove holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Turn the clamping lever (1) against the direction of the arrow to release the special tool 2 446 919.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unscrew the bolt (1) and remove the special tool 2 446 919  from the exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.
