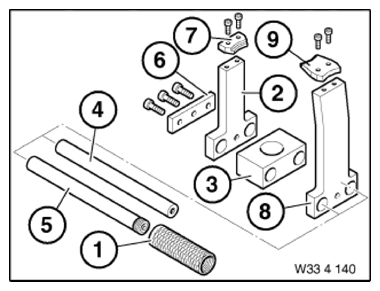

0 492 397 (33 4 140) Device
| Use | For removing rubber mount in rear axle support. |
COMPRISING SPECIFICATION
| No. | BMW order number | Replaced by | Description | In conjunction with |
|---|---|---|---|---|
| 1 | 0 492 398 (33 4 141) | Pipe (Threaded tube) Deletion, only available via tool set |
||
| 2 | 0 492 399 (33 4 142) | Shaped part (Shaped part) 2 pieces Model series: E38, E39, E46 Deletion, only available via tool set |
||
| 3 | 0 492 400 (33 4 143) | Shaped part (Shaped part) |
||
| 4 | 0 492 401 (33 4 144) | Rod (Guide bar) |
||
| 5 | 0 492 402 (33 4 145) | Rod (Guide bar) With thread dog point |
||
| 6 | 0 492 403 (33 4 146) | Plate (Fixing plate) With screws Deletion, only available via tool set |
||
| 7 | 0 492 404 (33 4 147) | Pressure piece (Pressure piece (2 x)) With screws - model series: E38, E39, E46 Deletion, only available via tool set |
||
| 8 | 0 492 405 (33 4 148) | Shaped part (Shaped part) 2 pieces Model series: E39/2, E65, E67, RR1 |
||
| 9 | 0 492 406 (33 4 149) | Pressure piece (Pressure piece (2 x)) With countersunk screw - model series: E39/2, E65, E67, E87 |
