84 31 550 Removing and installing/replacing microphone on the driver's side (after vehicle diagnosis) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Removing the left hands-free microphone
Removing the left hands-free microphone

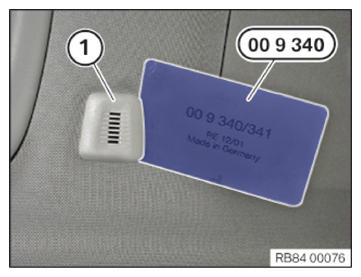

Lift the hands-free microphone (1) with the special tool
0493 687 (009 340)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Open insulation (1).
Unlock plug connection and disconnect.
Remove the hands-free microphone (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
