Install left rear-compartment stratification flap motor

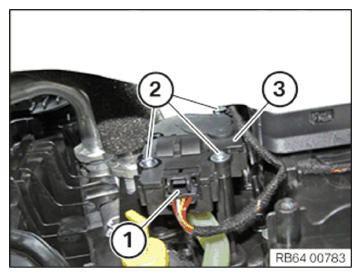

• Correctly position the rear-compartment stratification flap motor (3) and tighten the screws (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

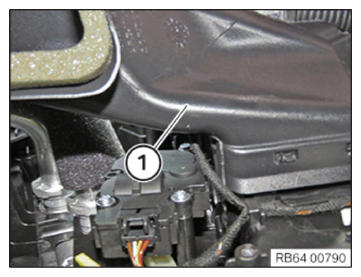

• Correctly position the air duct (1) and engage with the heating and air-conditioning unit towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the pedal mechanism TRIM PANEL .
