Removing oil filler neck
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER OF THE RIGHT DME CONTROL UNIT .
- Refer to REMOVING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
- Refer to REMOVING RIGHT INTAKE FILTER HOUSING WITH RIGHT FRONT-END STRUT .
- Refer to PARTIALLY RELEASING THE RIGHT CHARGE AIR LINE .
- Refer to REMOVE THE CLEAN AIR PIPE OF CYLINDER BANK 1 .
- Release the screw (2) at the oil filler neck (3).
- Release the screw (1) at the oil filler neck (3).

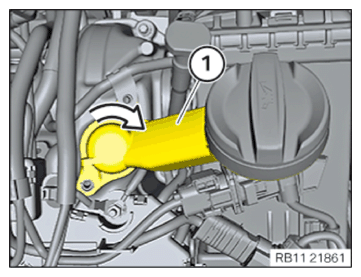

- Turn the oil filler neck (1) by about 15° clockwise.
- Remove the oil filler neck (1).
