Prepare New Part

Further information is available.

Replacing the coarse thread bolts and threaded weld bolts, surface steel

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Take the number and position from the component to be replaced or the installed parts.
Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt (1), threaded weld bolt (2)
Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.
Mark and carry out a separating cut on the new part of the outer wheel arch section as per the separating cut on the vehicle and add 15 mm of material to this separating cut.
Remove adhesive residue on the vehicle flange surfaces.
Adjust the new part outer wheel arch section.
Prepare area (1) for joining by overlapping.

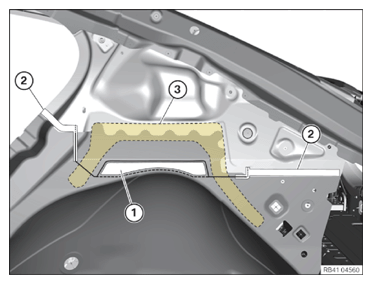

Prepare the new part in areas (1) and (2) for joining by welding.
Make sure that there is a sufficient distance to the adhesive area (3).

Courtesy of BMW OF NORTH AMERICA, INC.

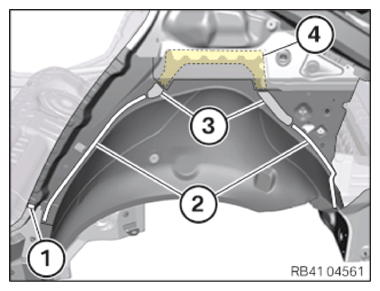

Prepare the new part in areas (1) and (2) for joining by welding.
During this process, make sure that there is sufficient distance to the adhesive areas (3) and (4).

NOTE: TECHNICAL INFORMATION
For additional information see: SPOT-WELD BONDING STEEL COMPONENTS - (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .

Courtesy of BMW OF NORTH AMERICA, INC.

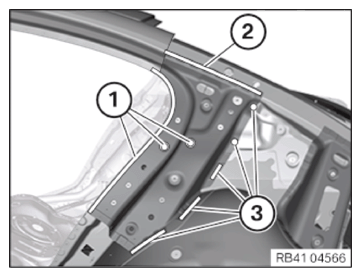

In the areas (2), observe the procedure for replacing spot-welded adhesive joints for the series.
NOTE: TECHNICAL INFORMATION
Structural adhesive bonding.
Observe preparation of bonding surfaces.
For additional information see: BMW/MINI BONDING INSTRUCTIONS (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
Prepare the areas (3) for joining by bonded rivet connection.
Transfer the holes for the punch rivets that were opened during the removal to the new part and drill with 0 6.8 mm.

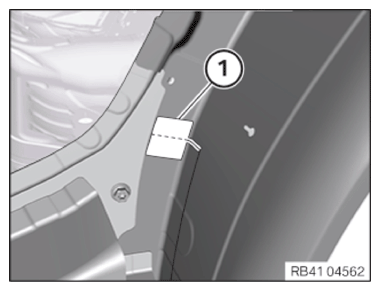

Prepare a reinforcement plate (1) for the separating cut.
Prepare the new part in area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare area (1) for joining by overlapping.

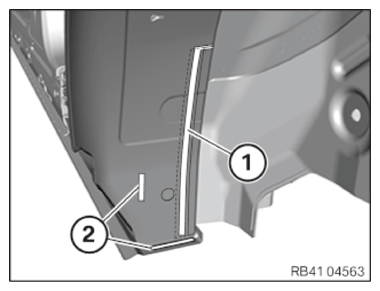

Prepare the new part in areas (1) and (2) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Fit in the new part tension strap.

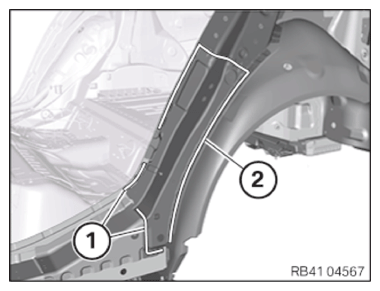

Prepare the new part for joining by welding in these areas (1).
Ensure sufficient distance to the bonded rivet connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare new parts C-pillar reinforcement (1) and C-pillar insert (2) for joining by welding.
Refer to the removed components for exact positions.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the new part C-pillar reinforcement and prepare in the areas (1) to (3) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the new part C-pillar support and prepare the areas (1) and (2) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
