New Parts Required

NOTE: TECHNICAL INFORMATION

Observe the procedure for repair stage 3.
For additional information see: REPAIR TECHNIQUES, REPAIR STAGE 3 - (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.

Further information is available.

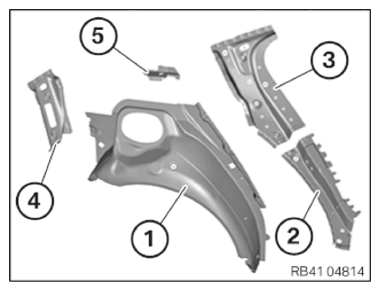

Prepare the following new parts (see Electronic Parts Catalog [EPC]):
Rear outer wheel arch section (1)

C-pillar support (2)

C-pillar reinforcement (3)

C-pillar retaining strap (4)

C-pillar reinforcement insert (5)

Shaped part, outer wheel arch

Shaped part, wheel arch interior

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) - (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .

Supply the following consumables:

Material	Quantity
Adhesive K1	1
Blind rivet N1	4
Coarse thread bolt	5
Cleaning agent R1	1
Cleaning agent R2	2
Sealant D1
Cavity sealing wax remover
