Installing front brake pads

• If applicable, observe the identification of the removed brake pads.

  If the brake pads are worn on one side, they must not be mixed up.

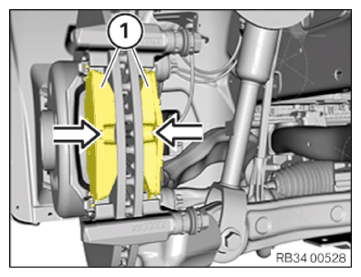

• Install the brake pads (1) into the brake caliper in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the special tool (cable tie) 2 413 317  .
• Install the brake caliper (3).
• Replace screws.

  Parts:  screw

• Tighten the screws (1), if applicable, hold against the hexagon head (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install front brake pad WEAR SENSOR  (16 inch brake).
• Install the front left and right WHEELS .
• COMMISSION/BEDD IN new brake pads and brake discs.
