Integrated Suspension Systems - Repair (G30)
>>
37 11 Control And Suspension Elements, Front
>>
37 11 030 Removing and installing front left or right spring strut (530i 2017-2022, 530e PHEV 2018-2022, 540i 2017-2022)
>>
Remove spring strut
Remove spring strut

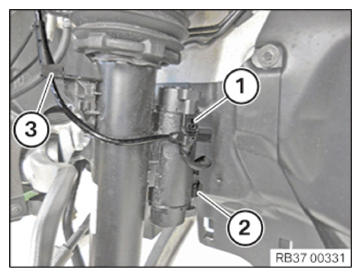

Unlock and disconnect the plug connections (1) and (2).
Remove cable from holder (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Press the swivel bearing down slightly.

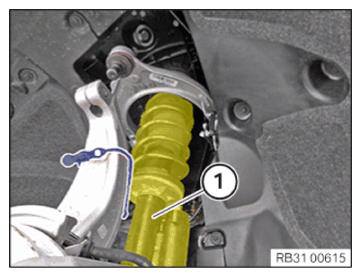

Remove the spring strut (1) at the bottom of the wishbone.
Remove spring strut (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
