Removing the dust plate
NOTE:
TECHNICAL INFORMATION
The work must be performed with care to prevent component damage.
The work must be performed with care to prevent component damage.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.

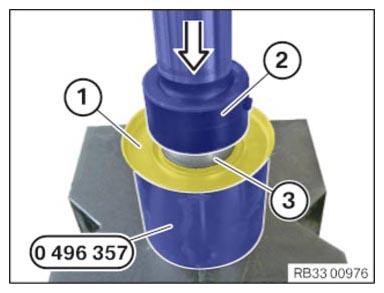

Version A: Removing the dust plate
- Release and remove the dust plate (1) with the help of a hydraulic press (2) and the special tool 0 496 357 (31 5 272) in the direction of arrow from
the input flange (3).

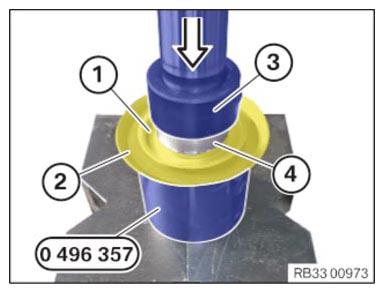

Version B: Removing the dust plate
- Release and remove the small dust plate (1) and the large dust plate (2) using hydraulic press (3) and special tool 0 496 357 (31 5 272)
from input flange (4) in the direction of the arrow.
