Supplying The New Parts Required

NOTE: TECHNICAL INFORMATION

Observe the procedure for repair stage 2.
For additional information see: REPAIR TECHNIQUES, REPAIR STAGE 2 - (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.

Further information is available.

Procure the following new parts (see Electronic Parts Catalog):

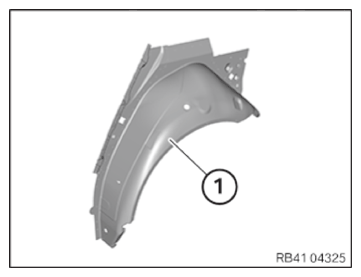

- Outer wheel arch section (1)
- Shaped part entrance/shaped part outer wheel arch
NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) - (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .

Courtesy of BMW OF NORTH AMERICA, INC.

Have the following consumables ready:

Material	Quantity
Adhesive K5 (50 ml)	1
Blind rivet N3	15
Coarse thread bolt	5
Cleaning agent R1	1
Cleaning agent R2	1
Sealing compound D2
Cavity protection wax remover
