Installing the rubber mount on the front rear axle differential

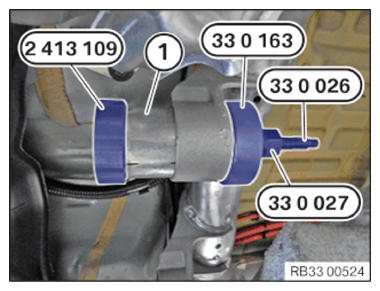

• Pull in the rubber mount using special tools 2 413 109, 0 496 609 (33 0 163), 0 496 505 (33 0 026)  and 0 496 506 (33 0 027)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Lift and secure the rear axle DIFFERENTIAL
• Install the rear HEAT SHIELD .
• Install EXHAUST SYSTEM
• Install the left and right camber control arm COVER .
