Supply The New Parts Required
NOTE:
DANGER
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: REPAIR TECHNIQUES, REPAIR STAGE 3 - (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
- Refer to REMOVE FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT .
- Refer to DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECK THAT NO VOLTAGE IS APPLIED .
Further information is available.
- Prepare the following new parts (see Electronic Parts Catalog [EPC]):

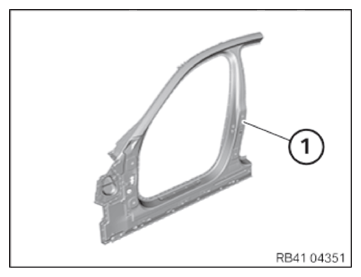

A-pillar, outer part (1)
NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) - (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) . - Supply the following consumables:
Material Quantity Adhesive K1 1 Blind rivet N7 15 T-bolt 5 Cleaning agent R1 1 Cleaning agent R2 1 Cavity sealing wax remover 1 Sealant D1 1
