Collision - Body Panel Repair (G30) (3 Of 3)
>>
41 63 Other Flaps
>>
41 63 000 REMOVING AND INSTALLING THE FUEL FILLER FLAP (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Install The Fuel Filler Flap
Install The Fuel Filler Flap

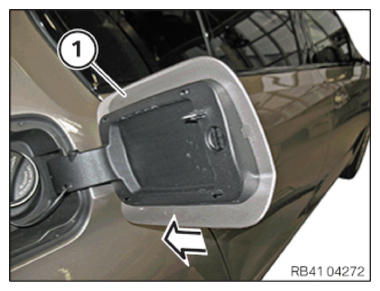

Slide the fuel filler flap
(1)
onto the hinge in the direction of the arrow.
Lock must audibly engage.
Close the fuel filler flap
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
