Remove The Outer Section Of The B-Pillar

Further information is available.

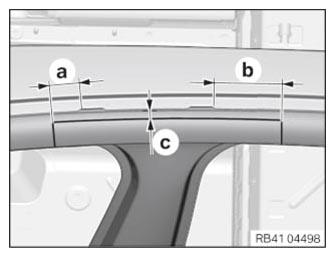

• Mark and cut the separating cut (1) to dimension (a). Thereby disconnect only the outer panel.

  Dimension (a) = 210 mm from stamped edge.

  Courtesy of BMW OF NORTH AMERICA, INC.

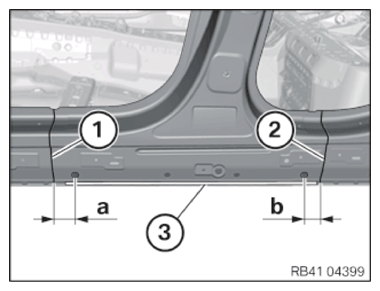

• Mark and cut the separating cuts (1) and (2) according to the specified dimensions.

  Thereby disconnect only the outer panel.

  Dimension (a) = 60 mm from the center point of the hole Ø 20 mm.

  Dimension (b) = 50 mm from the center point of the hole Ø 20 mm.

• Open welded connections in area (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release welded connections in areas (1).
  NOTE: TECHNICAL INFORMATION
  For additional information see: OPENING BONDED CONNECTIONS - (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
• Open spot-welded adhesive joints in areas (2).
• Release the outer section of the B-pillar from the cavity sealing (3) and remove.
