Pedals - Repair (G30)
>>
35 40 Foot Controls
>>
35 40 001 Removing and installing or replacing accelerator pedal module (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove accelerator pedal module
Remove accelerator pedal module
Lever out cover (1) towards the top.
Courtesy of BMW OF NORTH AMERICA, INC.
Release the hexagon socket screw (1).

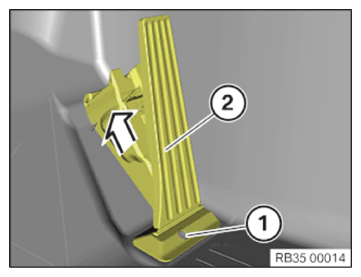

Feed out accelerator pedal module (2) towards the top.
Courtesy of BMW OF NORTH AMERICA, INC.
Disconnect plug connection (1) and remove the accelerator pedal module.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
