Prepare New Part

Further information is available.

NOTE: RISK OF DAMAGE
Damage to the spindle drive.
Shifting the trunk lid manually can damage the spindle drive.

NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see:BMW/MINI BONDING INSTRUCTIONS (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .

NOTE: Perform the steps on the left and right side.

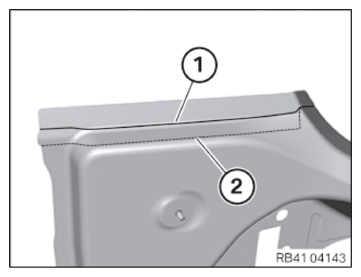

Mark the separating cut (1) on the new part according to the separating cut on the vehicle + approx. 15-20 mm material allowance and cut. (2) = Separating cut on the vehicle

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust tail cowling in combination with trunk lid and rear lamps and secure.

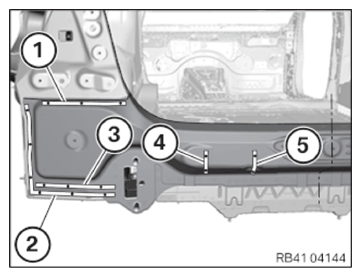

In the area (1) to (5), set bores Ø 4.2 mm for blind rivets.

Courtesy of BMW OF NORTH AMERICA, INC.
