Installing The Tail Panel

Further information is available.

NOTE: Perform the steps on the left and right side.

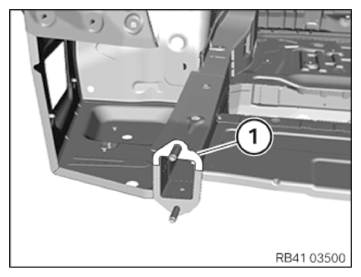

Do not apply any adhesive in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE - CLEANING AGENT DESCRIPTION

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE - CLEANING AGENT DESCRIPTION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K5 to bonding surfaces.
ADHESIVE DESCRIPTION

Body adhesive K5 195 ml 83195A59935
Install the rear trim panel in the areas (1) to (5) with blind rivets N3.
CONSUMABLE - BLIND RIVET DESCRIPTION

Blind rivet N3
Ø 4 mm; clamping area 1-3 mm 83190301421

Courtesy of BMW OF NORTH AMERICA, INC.

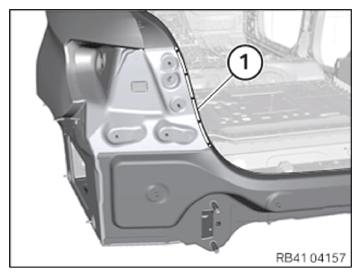

Use 9 punch rivets N4 in the area (1).
CONSUMABLE - PUNCH RIVET DESCRIPTION

Punch rivet N4
Ø 3 mm; 4 mm long 83192457307

Courtesy of BMW OF NORTH AMERICA, INC.

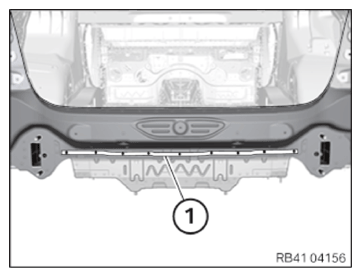

Use 5 punch rivets N4 in the area (1).
CONSUMABLE - PUNCH RIVET DESCRIPTION

Punch rivet N4
Ø 3 mm; 4 mm long 83192457307

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw
Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
Screw in the EMC screw.
Seal the EMC screw with the sealant.
CONSUMABLE - SEALANT DESCRIPTION

Sealant D1 (seam sealing) 310ml 83422409985

NOTE: TECHNICAL INFORMATION
Avoid contact of the escaped adhesive with the support for the bumper cover. Do not use any cleaning agents containing solvents.
Press in the tail cowling in area (1) and remove the emerging adhesive.
Before the adhesive hardens, install the support for the bumper cover.
After the adhesive has hardened, install 3 EMC screws in the areas (2) shown.
CONSUMABLE - SCREW DESCRIPTION

screw
EMC screw, SF Plus, M5x15 83190301639

Courtesy of BMW OF NORTH AMERICA, INC.
Install the support (3).
Position and tighten the screw (1).
TIGHTENING TORQUES SPECIFICATION

Support to tail panel

Screw M6 8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

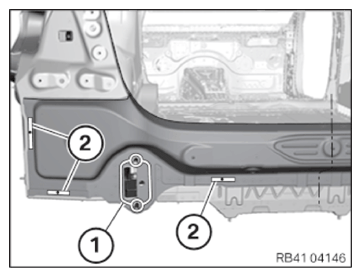

Weld the support (3) in areas (2).
In the areas (1), set two MAG weld seams with a length of 20 mm.
Avoid excessive application of heat to adhesive areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
