Installing The Left Side Panel

Further information is available.

• Open the front door.

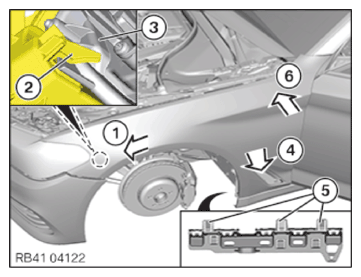

• With a second person, install the side panel towards the vehicle at an angle, shifting from the rear to the front (1).
• Position guide (2) of the side panel on the headlight (3).
• Clip in side panel in the area of the A-pillar downwards (4) into the detents (5).
• Position side panel in the area of the A-pillar (6).
• Screw in all screws on the side panel until it is just about still possible to shift the side panel.
  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see: BODY DIMENSIONS .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust gap dimensions.

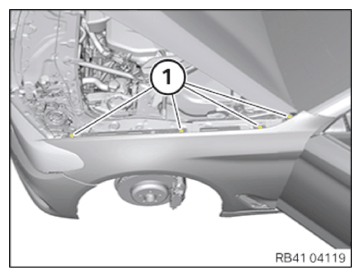

• Renew screws (1).

  Parts:  screw

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to bracket
  M6 screw Renew screw.	tightening torque
  	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

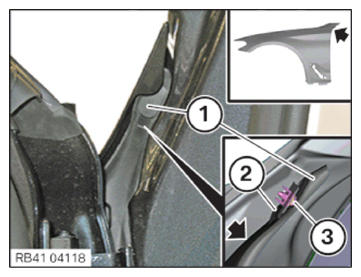

• Renew the screw (3).

  Parts:  screw

• Tighten down screw (3).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to bracket
  M6 screw Renew screw.	tightening torque
  	8 Nm

• Hook seal (1) onto the holder of the side panel with the retaining lug (2).
• Engage seal (1) on all detents.
• Close front door.

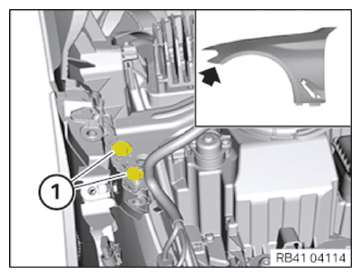

• Renew screws (1).

  Parts:  screw

• Tighten the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Side panel to bracket
  M6 screw Renew screw.	tightening torque
  	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

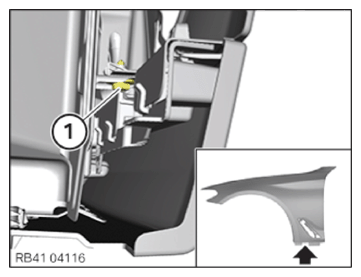

• Renew the screw (1).

  Parts:  screw

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to bracket
  M6 screw Renew screw.	tightening torque
  	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

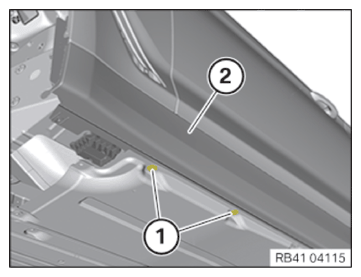

• Tighten screws (1) for the door sill trim panel (2).
  TIGHTENING TORQUES SPECIFICATION



  Undershield
  screw	Tightening torque
  	2.6 Nm
  Plastic nut	Tightening torque
  	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

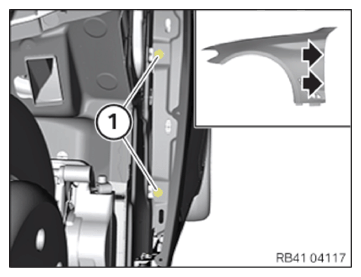

• Renew screws (1).

  Parts:  screw

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to bracket
  M6 screw Renew screw.	tightening torque
  	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

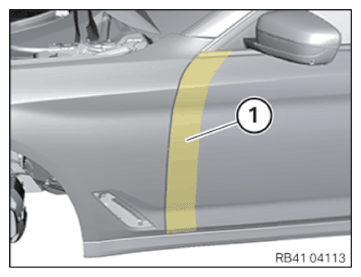

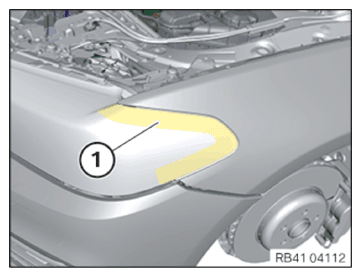

• Remove protective film (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove protective film (1) on headlight.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT BUMPER COVER ON THE SIDE PANEL .
• Refer to INSTALLING THE COVER HOUSING FOR THE HIGH-VOLTAGE CHARGING SOCKET .
• Refer to INSTALL THE AIR DUCT ON THE INNER SIDE PANEL .
• Refer to INSTALL THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALL THE CHARGING SOCKET FLAP .
• Refer to MOUNTING THE WHEEL .
• Refer to INSTALL THE TRIM ON THE SIDE PANEL .
• Refer to INSTALLING THE MOUNT OF THE HOOD SEAL .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALL THE COVER IN THE ENGINE COMPARTMENT ON TOP .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
