Preparing New Part

Further information is available.

NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see:BMW/MINI BONDING INSTRUCTIONS (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .

Mark and make the separating cuts on the new part in accordance with the separating cuts on the vehicle.
Prepare reinforcement plates at the separating cuts (bonded and welded).
Adjust new part to fit and secure.

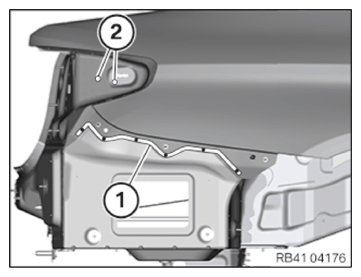

Areas (1) and (2): Drill Ø 4.2 mm holes for blind rivets.

Area	Number
1	6
2	2

Courtesy of BMW OF NORTH AMERICA, INC.

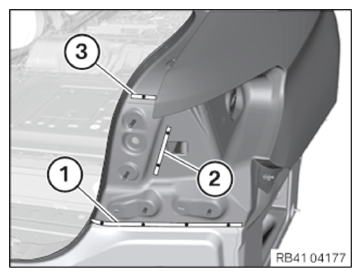

Areas (1) to (3): Drill Ø 4.2 mm holes for blind rivets.

Courtesy of BMW OF NORTH AMERICA, INC.

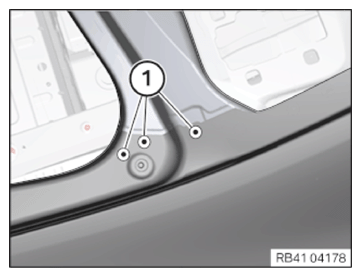

In areas (1), set 3 holes with diameter 4.2 mm for blind rivets.
Remove new part and deburr bores.
Prepare remaining areas for bonded rivet connections with punch rivets.
