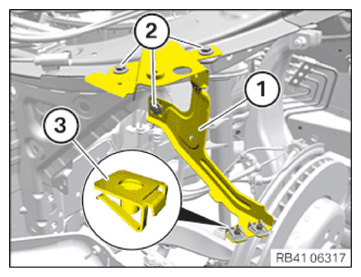

Installing The Front Holder
- Position holder (1).
- Renew screws (2).
Parts:
screw
- Tighten screws (2).
TIGHTENING TORQUES SPECIFICATION
| Side panel holder to body |
| Screw M6 Renew screw. |
Tightening torque
8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Remount sheet metal nuts (3).
- Fasten wiring harness (2) at attachment points (arrows).
- Connect connectors (1) and lock.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
