Split-Rubber Type Seal

Follow manufacturer's procedures when installing split-rubber type rear main oil seals. Installation procedures vary with manufacturer and engine type. See Fig 1.

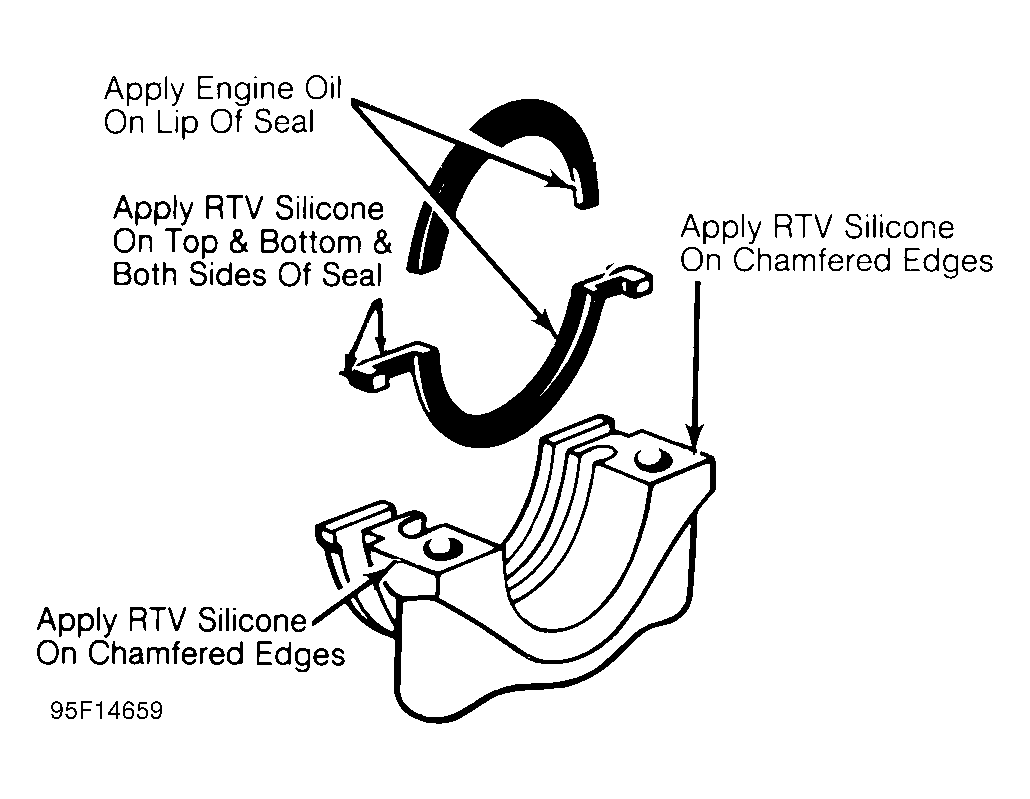

Fig 1: Installing Typical Split-Rubber Seal
G95F14659
