Collision - Body Panel Repair (G30) (3 Of 3)
>>
41 62 Tailgate
>>
41 62 540 REMOVING AND INSTALLING/REPLACING BOTH TAILGATE HINGES (TAILGATE REMOVED) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Install Right Tailgate Hinge
Install Right Tailgate Hinge
(2)
Place tailgate hinge.
Tighten nuts
(1)
.
TIGHTENING TORQUES SPECIFICATION
Tailgate hinge to body
Nut M8
Tightening torque
19 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

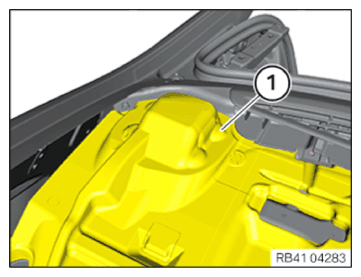

Fold back the sound insulation
(1)
towards the rear.
Courtesy of BMW OF NORTH AMERICA, INC.
Clip the wiring harness
(1)
in at the holders (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.
