Visual Inspection Of Brake Discs/Rotors For New Car Deliveries (SI B34 07 17)

Publication date: 2017-06-01
Reference number: SI B34 07 17

VISUAL INSPECTION OF BRAKE DISCS/ROTORS FOR NEW CAR DELIVERIES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B34 07 17, Date of Issue: June 2017

BMW:	All new vehicles prior to the first customer delivery only
GROUP:	Brakes

SERVICE INFORMATION

NOTE: This procedure described in this bulletin does not apply to CPO, demonstrator vehicles or any vehicle which has been previously delivered or placed in service.

The same information can be found in SI B01 11 17

INFORMATION

Due to certain handling and environmental conditions, the brake rotors friction surface may be subject to the formation of surface rust. While the presence of surface rust does not represent an issue related to the safe or proper operation of the vehicle, BMW is conducting an evaluation of this condition to ensure customer satisfaction.

Therefore, effective immediately, BMW is instituting a Pilot Program to evaluate rusted brake discs/rotors on new vehicles under the following conditions:

Customer must not be inconvenienced to perform the evaluation
Vehicle being evaluated must be scheduled for customer delivery within 10 days of the evaluation
At least one brake disc/rotor of the vehicle must show signs of surface rust as outlined in the matrix below.
A PuMA Case must be submitted for each vehicle
Digital pictures of each of the four brake discs/rotors must be submitted with the Info PuMA Case
NOTE: Pilot Program will run until September 1, 2017

PROCEDURE

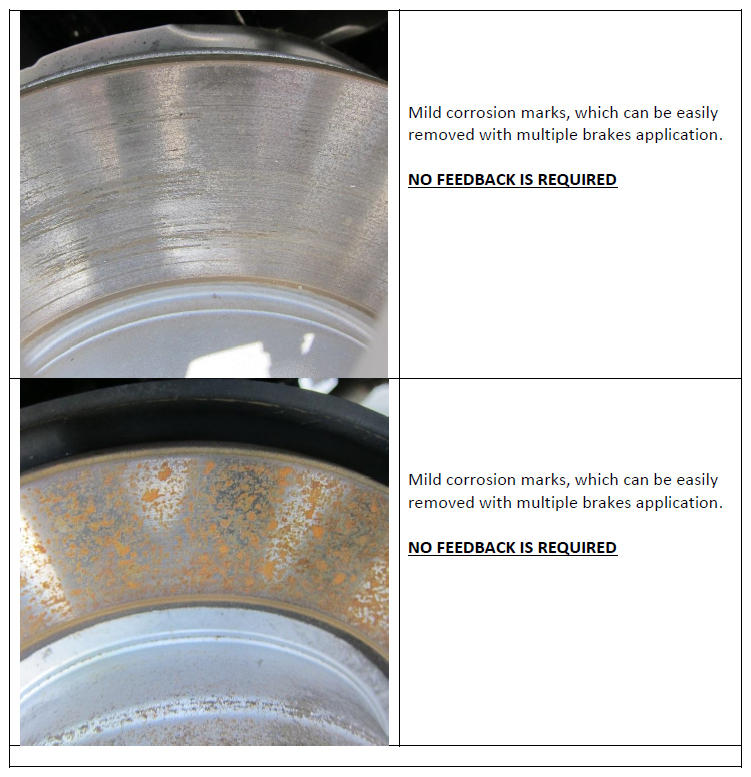

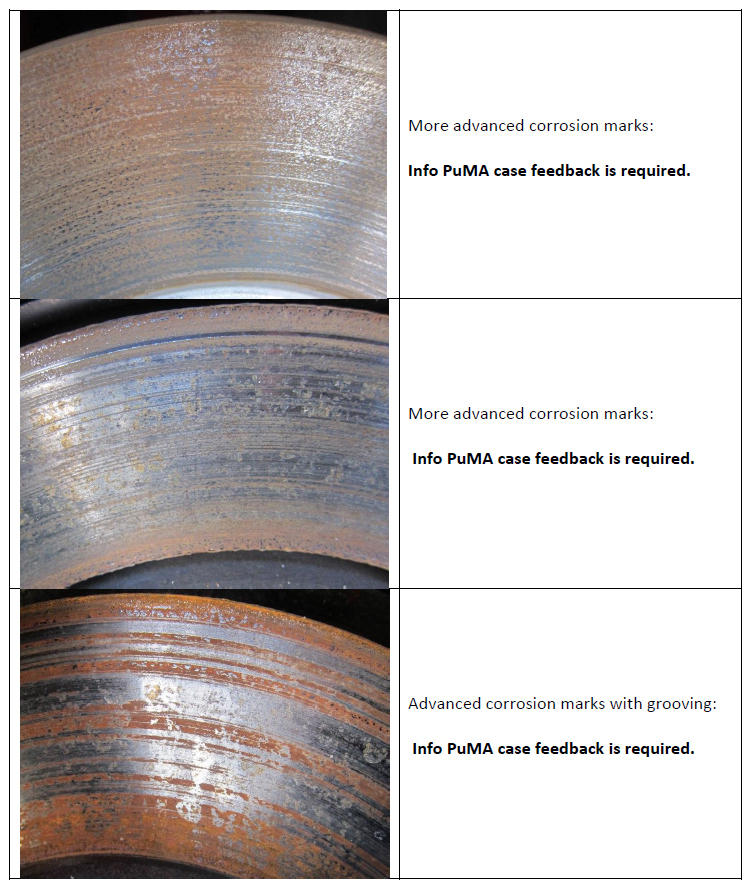

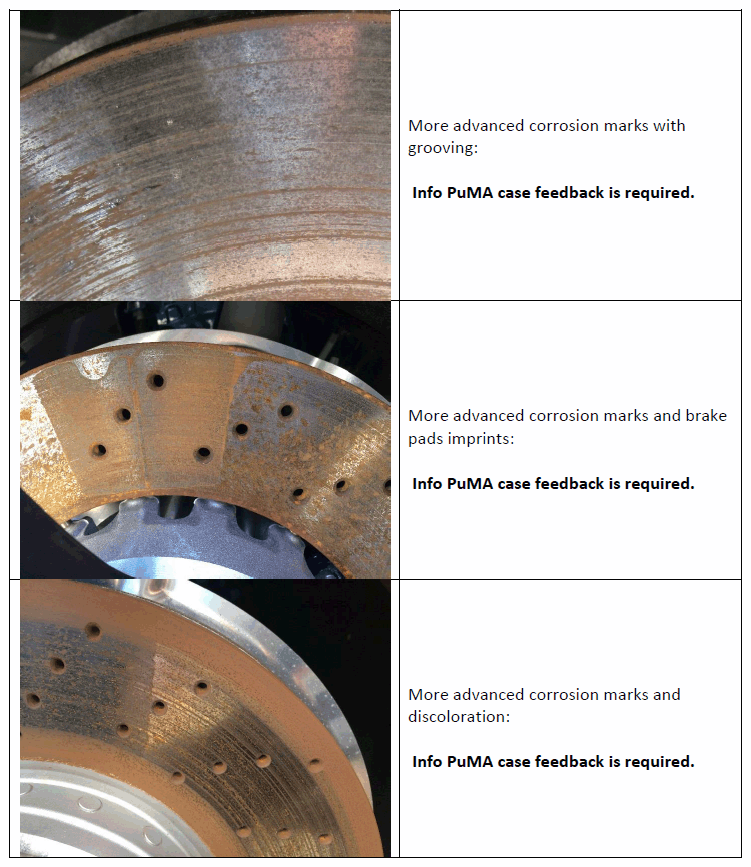

Evaluation of Brake Rotor Condition: If the rotor surface resembles the pictures from the attached "B011117 Rotors_Catalog_Attachment ," please follow the work procedures outlined below.

The following procedure should be performed prior to customer delivery and not interfere with the delivery process.

The surface of the brake disc/rotor can be viewed through the wheel opening.
It is not necessary to remove the wheel.
It is not necessary to place the vehicle on a lift.
Take a digital photo for each brake disc/rotor (as shown in the example, left).
Create an Info Only PuMA Case titled: "Brake Rotors Condition - Pre-Delivery"
Attach the digital photos to the Info PuMA Case.
Submit the case.

PARTS INFORMATION

NOTE: The procedure listed in the bulletin is simply an inspection, no parts are required.

WARRANTY INFORMATION

For new BMW vehicles, one-time prior to the first delivery, reimbursement for this "pilot field evaluation procedure" will be via normal claim entry utilizing the following information:

Defect Code:

3411907500

First Vehicle Delivery - Brake Disc Corrosion Analysis

Labor Operation:	Labor Allowance:	Description:
34 99 000	4 FRU	Perform field evaluation of rusted brake discs/rotors (Main work)
Or:
34 99 000	3 FRU	Perform field evaluation of rusted brake discs/rotors (Plus work - Vehicle is already in the workshop)

ATTACHMENTS

View PDF attachment B34 07 17 Rotors Catalog Attachment.
