51 12 Bumper, Rear
>>
51 12 825 Removing and installing/replacing rear center bumper guide (Bumper panel removed) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>

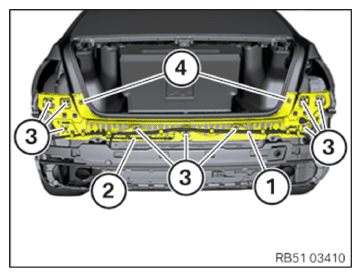

Removing the guide at the rear in the center
Removing the guide at the rear in the center
Detach the wiring harness (1) from the brackets.
Remove the aerial (2).
Loosen nuts (3).
Loosen the screws (4) and remove the guide at the rear in the center.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
