Installing the mirror glass

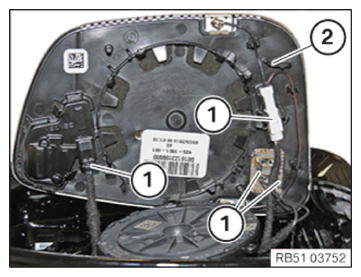

- Position mirror glass (2).
- Connect plug connections (1).

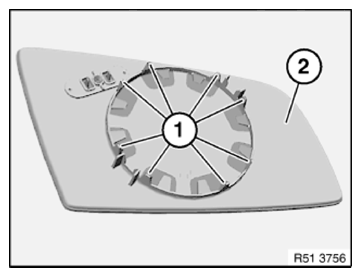

- Check whether retaining lugs (1) are missing or damaged and, if required, replace the mirror glass.
- Position the mirror glass (2) with the retaining lugs (1) flush with the drive for exterior mirror adjustment and clip in.
- Ensure correct locking.
- Check if the drive for exterior mirror adjustment is functioning correctly.
