Installing the front storage compartment

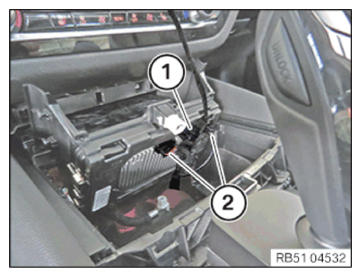

• Equipment specification with wireless charging:

  Connect connector (2).

  Secure the cable clips (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

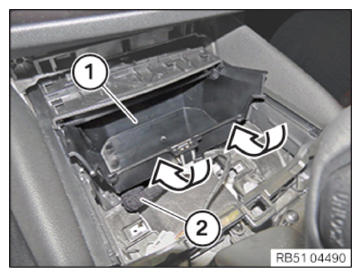

• Insert the storage compartment (1) in direction of arrow.
• Connect connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the CUP HOLDER .
• Install the center console TRIM .
• Install the center ARMREST .
• Install the center armrest STORAGE COMPARTMENT .
