Body Equipment - Repair (1 Of 3) (G30)
>>
51 16 Mirrors, Decorative Strips, Ashtrays, Consoles
>>
51 16 173 Replacing storage compartment of center armrest (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>

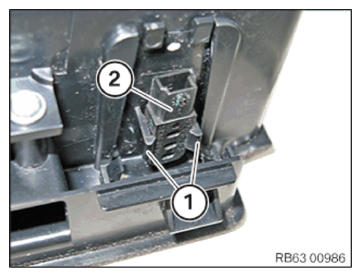

Removing the LED module for the storage compartment in the center console
Removing the LED module for the storage compartment in the center console
Loosen the latch mechanisms (1).
Pull the LED module (2) from the holder.
Courtesy of BMW OF NORTH AMERICA, INC.
