51 16 Mirrors, Decorative Strips, Ashtrays, Consoles
>>
51 16 173 Replacing storage compartment of center armrest (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Installing the connecting socket of the USB audio interface (storage compartment in the center console)
Installing the connecting socket of the USB audio interface (storage compartment in the center console)

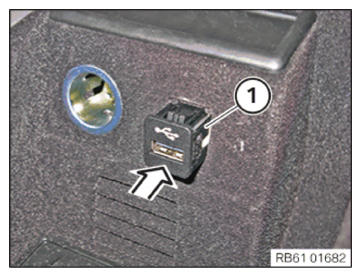

Press connecting socket (1) into the storage compartment in the center console in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
