Install the cup holder

• Connect associated connector.

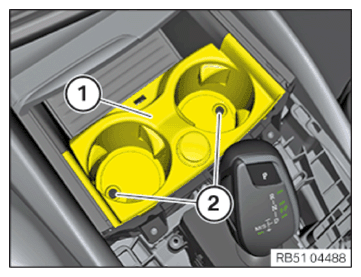

• Clip in the cup holder (1) from the top.
• Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the insert (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Secure the center console trim to the CENTER CONSOLE
• Install the center ARMREST .
• Install the center armrest STORAGE COMPARTMENT .
