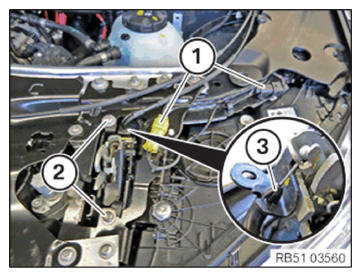

Installing the left bonnet lock

Attach the cable (3).
Feed in the bonnet lock.
Replace screws (2).
Parts: Bolts
Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Engine compartment lid catch
Screw Replace screws	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect all BATTERY EARTH LEADS

Only in vehicles with active pedestrian protection

Connect and lock the plug connections (1).

See ADDITIONAL INFORMATION .

Courtesy of BMW OF NORTH AMERICA, INC.

Activating the 48 V electrical system

Prerequisite

Ignition is switched off.

NOTE: RISK OF DAMAGE
Damage to 48-V battery
If a 48-V battery that is disconnected from the electrical system is activated, the battery electronics will be damaged.

Only carry out activation of the 48V electrical system with a completely connected 48-V battery.

Lift battery earth lead (1).
Remove special tool 2 452 007 .

Courtesy of BMW OF NORTH AMERICA, INC.
Release the negative battery cable (2) of the 48-V battery from the mounting.

Position the negative battery cable (2) of the 48-V battery on the negative battery terminal.
Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Negative battery cable to 48-V battery
Nut M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1) of the CAN bus and lock it.
Clip in clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Activate the 48V electrical system by closing the bonnet.

The activation takes place automatically.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

Install the top engine compartment COVER .
