51 31 Front And Rear Window
>>
51 31 011 Replace windscreen (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Replace the spacer
Replace the spacer

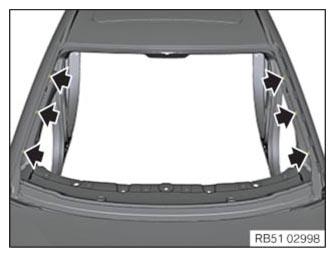

Remove the spacer (arrows) completely.
Replace the spacer 5 x 5 x 20 mm (arrows).
Parts:
Spacer 5 x 5 x 20 mm
Bond the spacer (arrows) centrally on the embossed marks.
Courtesy of BMW OF NORTH AMERICA, INC.
