Removing module carrier on the rear door
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary works
- Remove rear door WEATHER STRIP .
- Remove the door handle COVER .
- Remove rear door TRIM PANEL .
- Secure the fixed side window glass to the door frame when it is closed using adhesive tape.

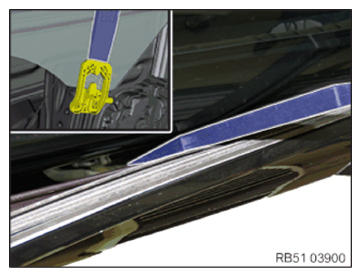

- Spread apart the bracket from the outside on the fixed side window glass as far as possible using special tool 0 496 569 (00 9 325) until the fixed side window glass can be detached.
- Move the power window down approximately 10 cm.
- Detach wiring harness (1) and disconnect plug connections.
- Release snap fastener (2).
- Loosen screws (1).
- Thread off the module carrier completely with the power window.
