Install front door trim panel

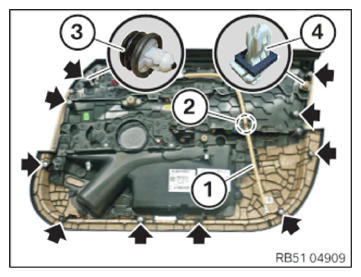

- Attach the Bowden cable (1) in area (2) in the door trim panel.
- Check clips (arrows) (3) for damage and, if necessary, replace them.
- The clips (3) must not be engaged. The disengaged state is shown.
- Check the clip (4) for damage and replace if necessary.

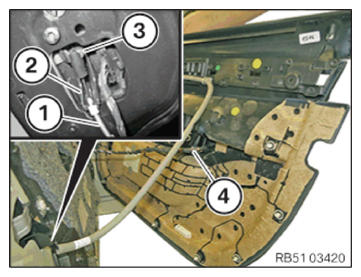

- Attach the Bowden cable (1) for the release lever on the door lock (3).
- Attach the Bowden cable (1) for the release lever on the counter support (2).
- Connect all the connectors and the cable clips of wiring harness (4) to the door trim panel.

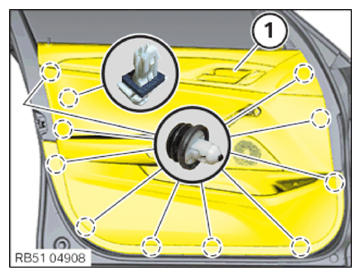

- Attach door trim panel (1) at the top to the window cavity seal.
- Clip the door trim panel (1) into the clips.

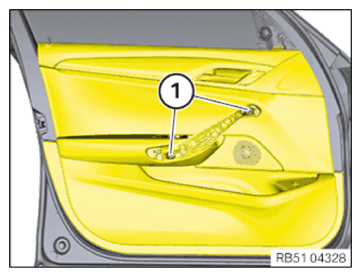

- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Door trim panel | ||
|---|---|---|
| Tightening torque | 3 Nm | |
Follow-up Work
