Remove the speaker cover from the door trim panel
Preliminary works
- Remove the mirror triangle COVER .
- Remove the door handle COVER .
- Remove front door TRIM PANEL .
NOTE:
Description is for left component only. Procedure on the right side is identical.

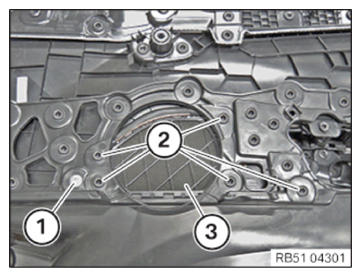

- Loosen screw (1).
- Drill out/grind down spot-welds (2).
- Remove the speaker cover (3).
