Install the speaker cover on the rear door trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

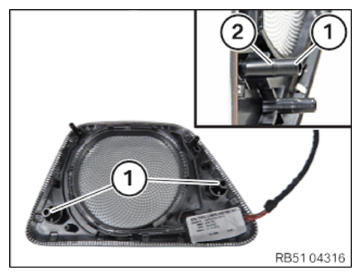

• Saw off the welding pins (1) along the molding (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove welding remnants on door trim panel with a scalpel.

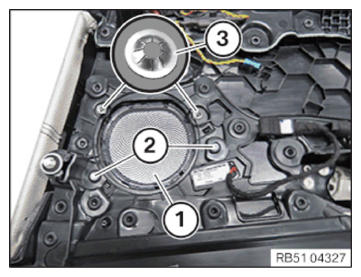

• Install speaker cover (1).

NOTE: Welding pins must not protrude from the door trim panel.

• Secure the speaker cover (1) with the lock washers (3).
• Tighten the repair screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Repair screw to door trim panel
Oval-head screw TS4x10 ISA	Tightening torque	2.3 Nm
