Remove the side trim panel in the footwell at the left A-pillar

Preliminary works

• Remove the pedal mechanism TRIM PANEL .
• Remove front entrance COVER STRIP .

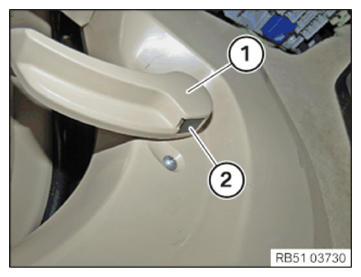

• Pull bonnet release lever (1) towards the rear.
• Lever out the locking wedge (2).
• Remove the bonnet release lever (1) inward.

  Courtesy of BMW OF NORTH AMERICA, INC.

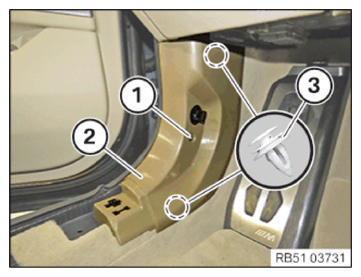

• Loosen screw (1).
• Loosen the side trim panel (2) at the clips (3) and remove it toward the inside.

Courtesy of BMW OF NORTH AMERICA, INC.
