Adjusting the oil pump timing chain
NOTE:
To provide a better overview: Shown without oil pan.

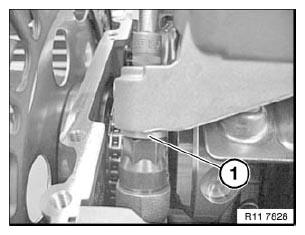

- Pre-tension the adjusting sleeve (1) of the oil pump with a Allen wrench.
TECHNICAL DATA - OIL PUMP TIMING CHAIN SPECIFICATION
| Adjustment value for oil pump timing chain |
| 9 +2-2
mm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
