Remove the lower B-pillar trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary works
- Remove front entrance COVER STRIP .
- Remove rear entrance COVER STRIP .
- Remove the upper b-pillar TRIM PANEL .

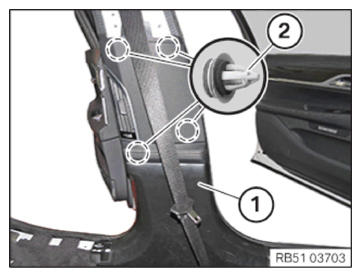

- Detach the B-pillar trim panel (1) from the clips (2) and remove toward the inside.
- If necessary, unlock the associated plug connection and disconnect.
