Installing C-pillar trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.

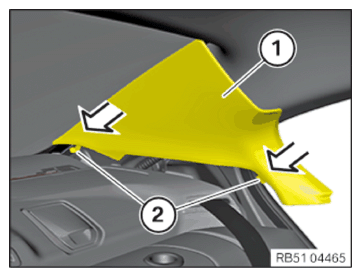

- Feed the C-pillar trim panel (1) with the guides (2) into the storage shelf in the direction of the arrow.

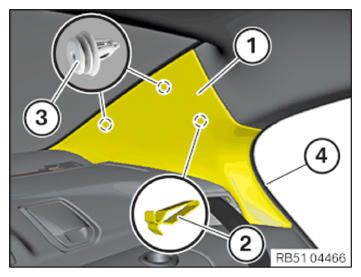

- Clip in the C-pillar trim panel (1) at the clamp (2) and at the clips (3).
- Make sure that the edge protection (4) is fitted correctly.
