Install the coolant temperature sensor on the connecting bracket of the crankcase

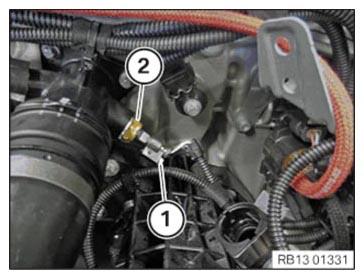

- Insert and install the coolant temperature sensor (2).
Parts : Gasket
- Tighten the coolant temperature sensor (2).TIGHTENING TORQUES SPECIFICATION
Coolant temperature sensor to crankcase connecting bracket M12X1.5 Tightening torque 13.5 Nm - Connect and lock the connector (1).
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE AUXILIARY COOLANT PUMP .
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to CONNECT THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECT THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALL CONTROL UNIT BRACKET .
- Refer to INSTALL THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to FASTEN CHARGE AIR LINE TO THE THROTTLE BODY .
- Refer to INSTALL FAN COWL .
- Refer to INSTALL THE REAR TOP CROSS CONNECTION .
- Refer to INSTALL FRONT CROSS CONNECTION .
- Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT
- Refer to FILL THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to VENT THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
- Refer to CHECK THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALL THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALL ACOUSTIC COVER .
- Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
