Install fuel tank
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Position the fuel tank (2).
Make sure that the fuel supply line is fitted correctly in the holder!
- Insert screws (1) and tighten.TIGHTENING TORQUES SPECIFICATION
Fuel tank on lower housing section M10 screw

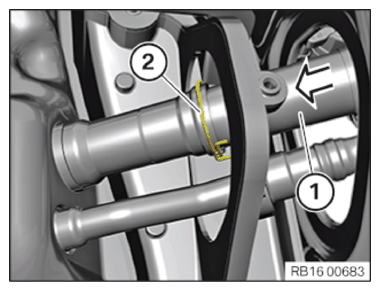

Replace screws.Tightening torque 35 Nm - Install the nozzles (1) in the direction of the fuel tank.
Ensure that the retaining clip (2) locks correctly in place.
- Connect connectors (1) and lock.
- Connect the snap fastener (2) and lock it.
Follow-up work
- Refer to INSTALLING THE FUEL FILLER PIPE WITH COVER HOUSING .
- Refer to INSTALLING THE HOUSING COVER FOR THE FUEL TANK .
- Refer to INSTALLING THE REAR WHEEL ARCH COVER .
- Refer to MOUNTING THE REAR RIGHT WHEEL .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to INSTALL LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING FRONT LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALL THE REAR LUGGAGE COMPARTMENT FLOOR COVERING
- Refer to INSTALL REAR SEAT BACKREST
- Refer to INSTALLING THE REAR SEAT BENCH .
- Refer to INSTALL BACKREST SIDE SECTION, LEFT .
- Refer to FILL FUEL TANK .
