Installing the trim panel for the pedal mechanism
- Connect associated connector.

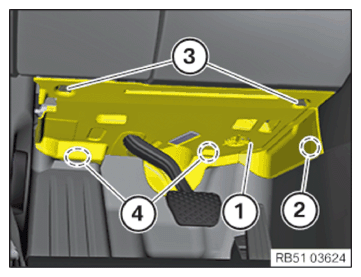

- Attach the trim panel for the pedal mechanism (1) in the guides (4) and fold it up.
- Clip the trim panel for the pedal mechanism (1) into the center console in this area (2).
NOTE:
TECHNICAL INFORMATION
It is imperative that the screws caps of the trim panel be correctly locked. This is the only way to ensure that the trim panel does not come loose and potentially tilt into the pedal area.
It is imperative that the screws caps of the trim panel be correctly locked. This is the only way to ensure that the trim panel does not come loose and potentially tilt into the pedal area.
- Insert screw caps (3) correctly and turn by 90° to lock.
