51 45 370 Removing and installing decorative strip on left dashboard (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the finisher on the instrument panel on the left
Remove the finisher on the instrument panel on the left
Preliminary works
Remove the left instrument panel
SIDE PANEL
.

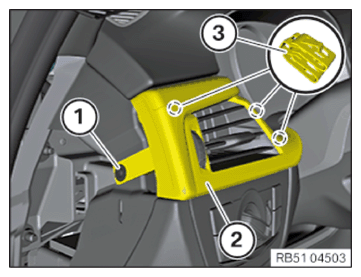

Loosen screw (1).
Unclip the finisher (2) from clamps (3).
Unlock associated plug connection and disconnect.
Courtesy of BMW OF NORTH AMERICA, INC.
